This product outdoor multi-functional mobile power supply, combined with solar charging, storage, discharge control management as the design basis, builtin high-capacity, high-performance lithium battery, using the current advanced automotive power lithium battery technology manufacturing, with multiple safety protection, strong output energy, to provide AC voltage output and different DC voltage output modes. It is convenient for different equipment to use electrical power supply, with strong flashlight, two-speed table lamp lighting, SOS flash mode, with household power supply, emergency emergency power supply, support for danger rescue, support for areas lacking power, camping or travel power supply and other use modes. The design system is composed of battery protection board, DC charging circuit, MCU control circuit, inverter circuit and LCD screen. Inverter 1000W pure sine wave AC220V/50Hz and AC110V/60Hz two different versions of voltage, based on pure resistance load, DC12V/10A,USB QC3.0, TYPE-C PD, Suitable for digital products, camping, emergency communication, medical rescue, fire rescue and other fields.
This is a portable power station for outdoors and indoors.Apply to wild camping,emergency communication,medical emergency,long drive journey,outdoor fishing. have 500W 1000W 2000W for your options
1500W With big capacity 1260Wh, which can fulfill your demand in weekend trip, camping, hiking, backpacking, hunting, fishing or trekking.

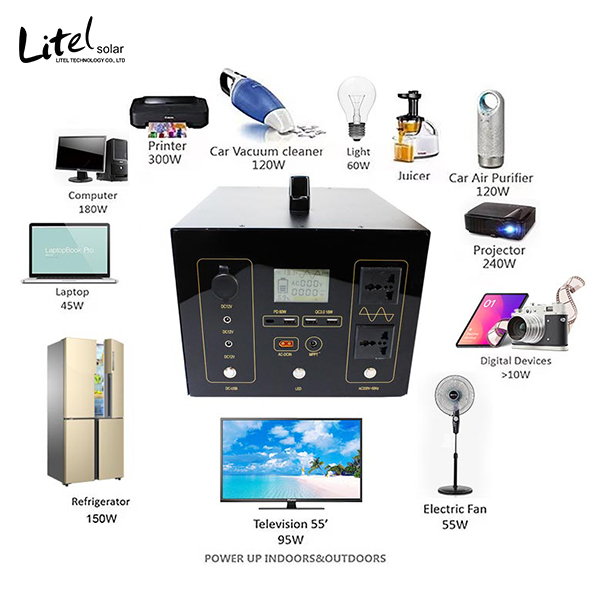

2 different output ports (2*USB, 2*AC) can charge most of your devices, including laptop, phone, tablet, fan, drone, car fridge, radio, LED light, MP3, digital cameras etc.
Convenient 2 ways of recharging (solar panel, wall charger) can get juice back easily.
1. Overload Protection
When the input current continuously exceeds 20A during a charge, the overload Protection Switch button will automatically pop out.
2. High/Low Temperature Protection
If EFDELTA’s battery temperature is higher than 45°C / lower than -20°C, all the input and output functions will stop and the fan will start working. Once the battery back to normal working temperature, EFDELTA will automatically resume operating.
Item list | First name | Specification parameters |
Input | Dc input | DC5521 12-24V/1-5A adapter |
Solar input | DC5521 12-24V/1-5A solar panel | |
Car charger input | DC5521 12-24V/1-5A car charging | |
Ac output 220V or 110V | Ac output voltage | AC220V±5% or AC110V±5% (this is an option function) |
Ac output power | 1000W | |
Ac output overpower protection | Around 1030W | |
Ac output waveform | Pure sine wave | |
Frequency | 50Hz/60Hz | |
USB output | USB1 Output | QC3.0 5V/3A,9V/2A,12V/1.5A-18W (Max) |
USB2 Output | QC3.0 5V/3A,9V/2A,12V/1.5A-18W (Max) | |
TYPE-C1 output | PD 5V/3A,9V/2A,12V/1.5A-18W (Max) | |
TYPE-C2 output | PD 5V/3A,9V/3A,12V/3A,15V/3A,20V/3A,PD60W (Max) | |
DC12V output | DC1 DC2, cigarette lighter output | 12V/10A-120W (Max) |
LED lighting | 1W | Two gear dimmer lighting, SOS flash mode |
Battery | type | Lithium iron phosphate power cell 20100140 large cell battery |
Cell capacity | 52000mAh/3.2V Total capacity 364000mAh /364Ah /3.2V 6000mAh/3.2V Total capacity 315000mAh /315Ah /3.2V Monomer 6000mAh/3.2V Total capacity 294000mAh /294Ah /3.2V | |
Battery pack power | 52Ah/22.4V (1164.8Wh), 7S1P (7 cells) 45Ah/22.4V (1008Wh), 7S10P (70 cells) 24Ah/22.4V (940.8Wh), 7S7P (49 cells) | |
Cycle life | More than 2,000 cycles | |
Charging parameters | Power adapter | DC |
Charge from 0% to 100% (automatic cut-off) | 8h | |
The voltage when the battery is fully charged | 25.2 V + / - 0.1 V | |
LCD Display Information | Display power, charging, stop charging status, power percentage and power column display and interface icon DC, AC, inverter state and available time display | |
Power-on static | Power-on static power consumption | < 10W |
Protective | Overtemperature protection | 85 ℃ or higher |
Safety protection | Short circuit, overload, over temperature, over voltage, over current, under voltage, etc | |
Features | Overtemperature recovery | 70 ℃ or less |
Reliable backup battery power supply for office devices such as router, laptop and etc
Generators for home use to keep your home security system, light and phone charged without fear of power outage
1x LED Light: 3 Levels (Low, Medium, High) , protecting the eyes, it also works well at night or in emergencies.
NOTE:
Fully charged every three month for best results and store it between -4℉~140℉.
When the 1260Wh portable power station is operating under 2W power for over 12 hours, it will activate the economy mode, and shut down automatically, so you don't worry about if it was turned off.
When you don’t use it, or recharge it in night, please confirm that all the switch buttons are turned off, or the fan maybe running sometimes in 12hours, which will affect your sleep.
AC Powered Device:For power saving, when the power consumption is less than 20W, the AC power will be automatically turned off in 12 hours. The rated power of your device is between 1000W to 2000W, it can be powered for 3mins then shut off.
Why does the battery lose power when not in use? The unit may be in standby mode where the power supply, screen, and/or inverter could be using up to 50W. Remember to long press the power button to turn the unit completely off. If the unit loses power when completely off, try recharging it to 100% and use it to 0% two or three times to calibrate the battery. If the problem persists, please contact customer support.
